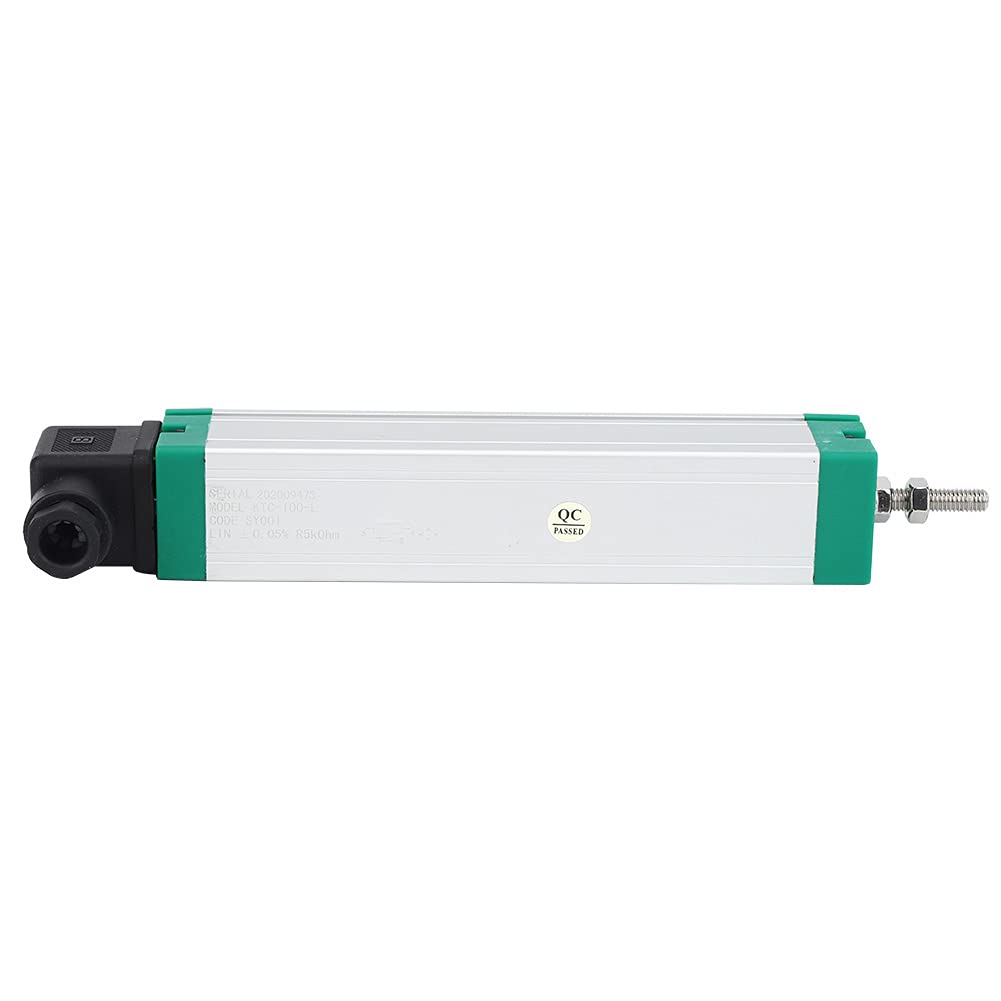

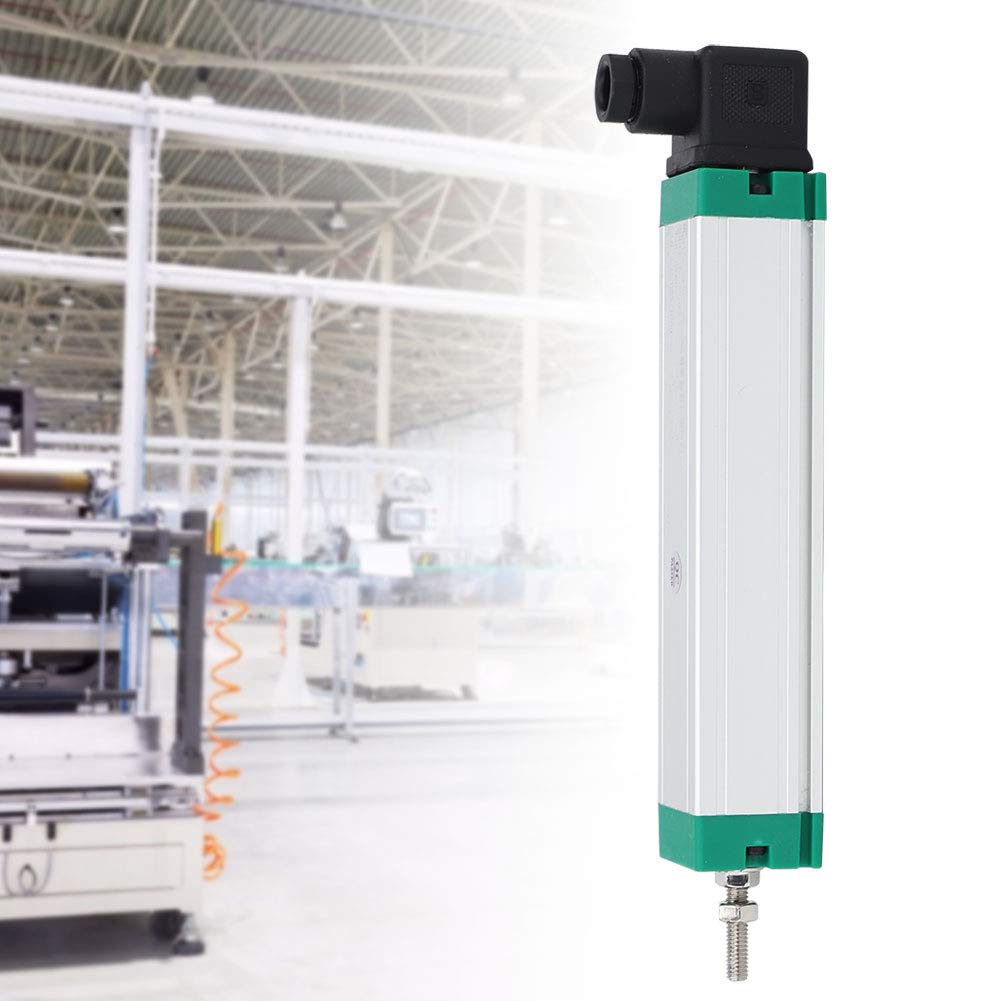

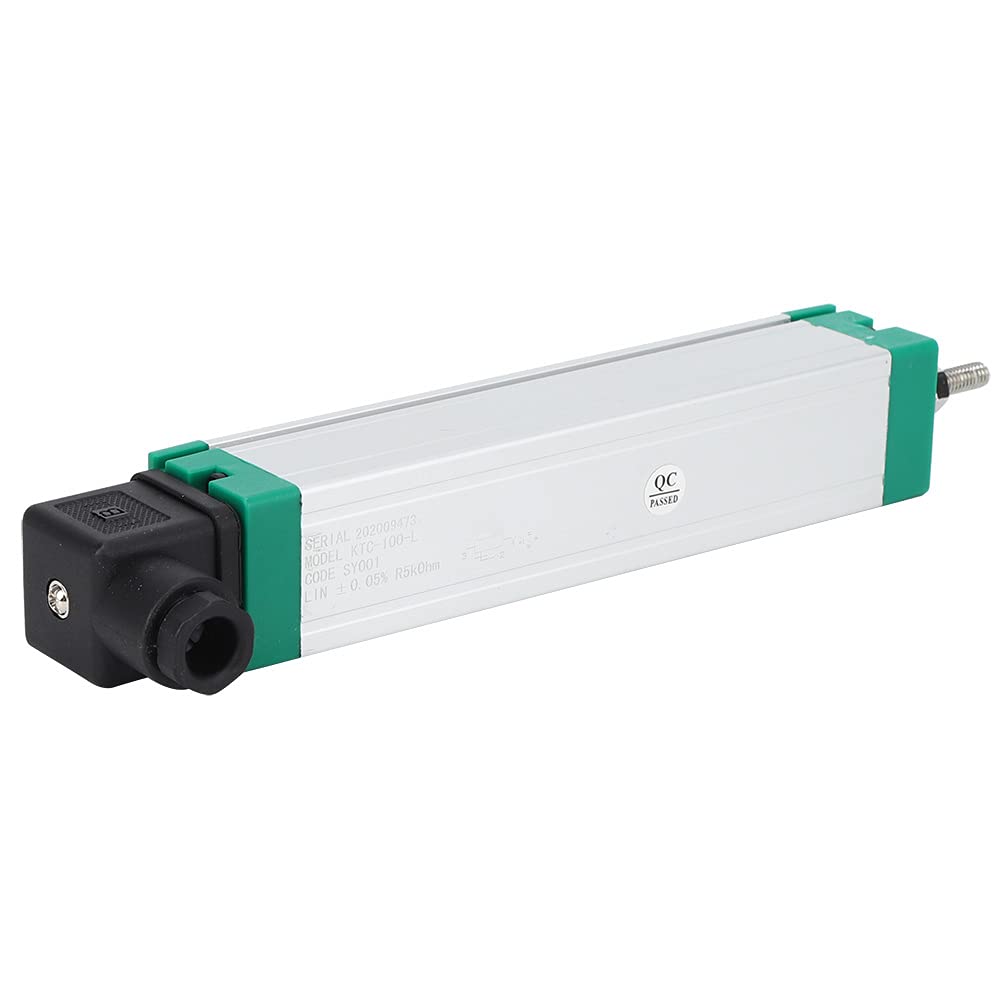

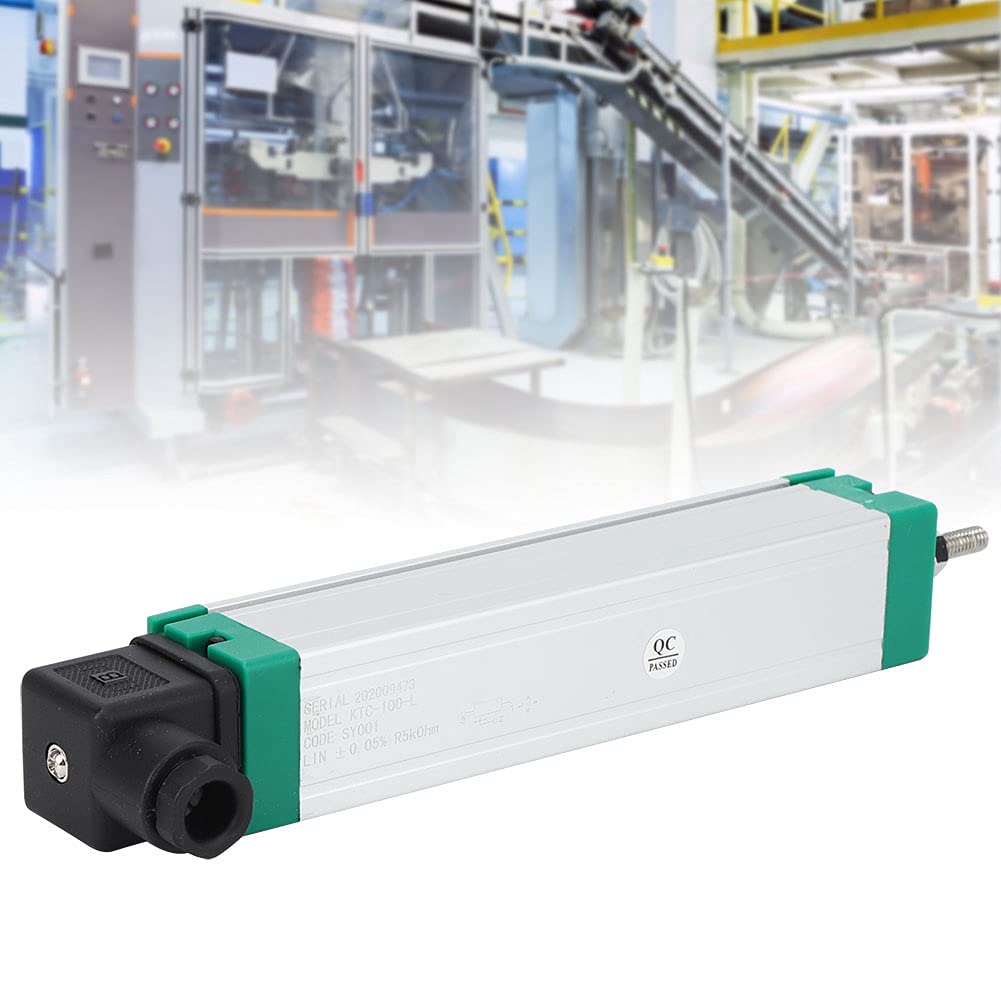

KTC-100 Stainless Steel Electronic Ruler Pull Rod Displacement Sensor for Injection Molding Machines - High Precision Measurement in Industrial Automation & CNC Applications
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:30365730
Product Description
Specification: Item Type: Displacement Sensor Optional : KTC-100, KTC-300 Material: Stainless steel Electrical Stroke: Range + 3mm Resolution / Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current Of Sliding Brush: ≤10μA The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio Of Output Voltage To Input Voltage: Usually 5ppm / K Insulation (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load Of Pull Rod: 50KG Work Force: Horizontal direction 100 × 10 ^ 6 times Maximum Operating Speed: 10m / S, maximum operating acceleration 10m / s² Level: Highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessories 4 x Screw
Product Features
RESOLUTION / RESOLUTION Infinite uninterrupted analysis.Reduce loss, high-definition sound quality, compatible with all devices.
VIBRATION STANDARD 5 ... 2000Hz, Amax = 0.8mm, amax = 20g.Adopt plug type, convenient and practical, no noise output, smooth engineering rod.

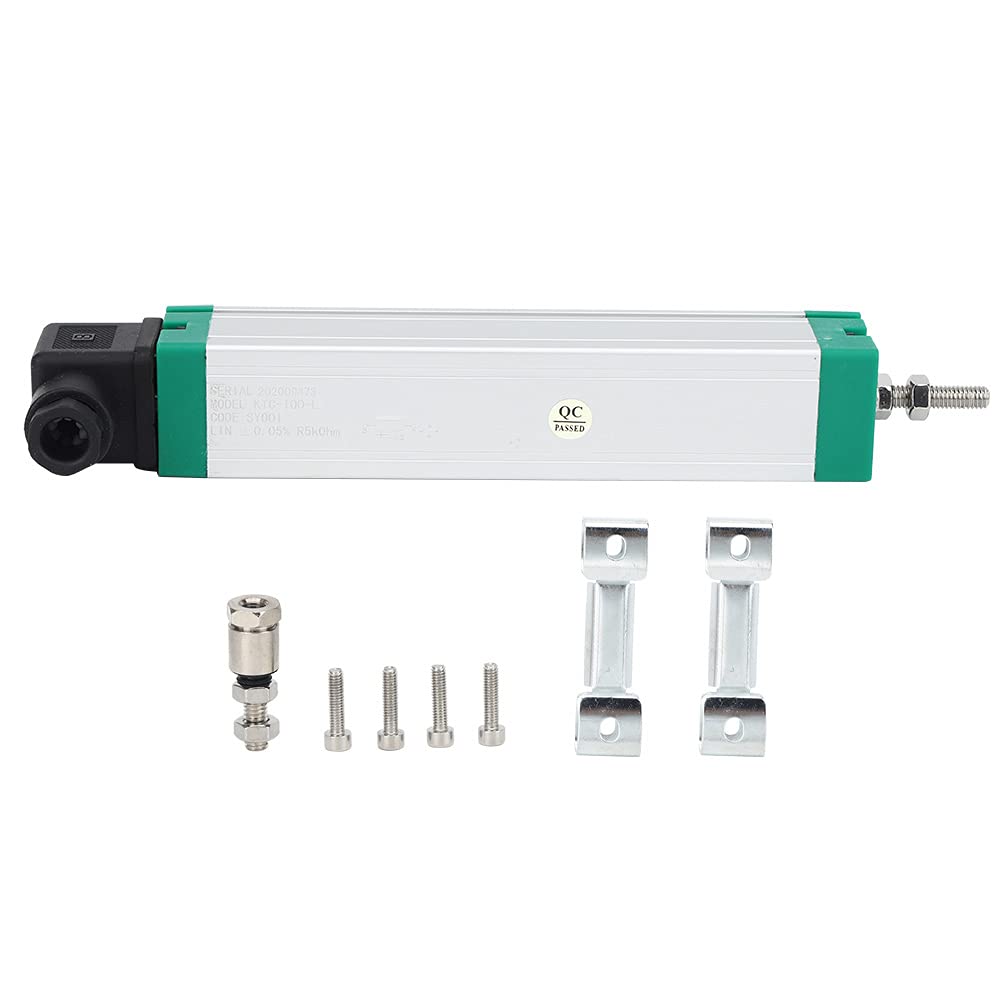

PACKAGE LIST 1 x Displacement Sensor, 1 x Plug, 3 x Accessories, 4 x Screw.
LEVEL The highest IP67 level, good effect.High compatibility, potentiometer principle, given input voltage (changes with displacement).
MATERIAL Displacement sensor is made of stainless steel.Using for Hessman plug to resist oxidation, exquisite workmanship.
