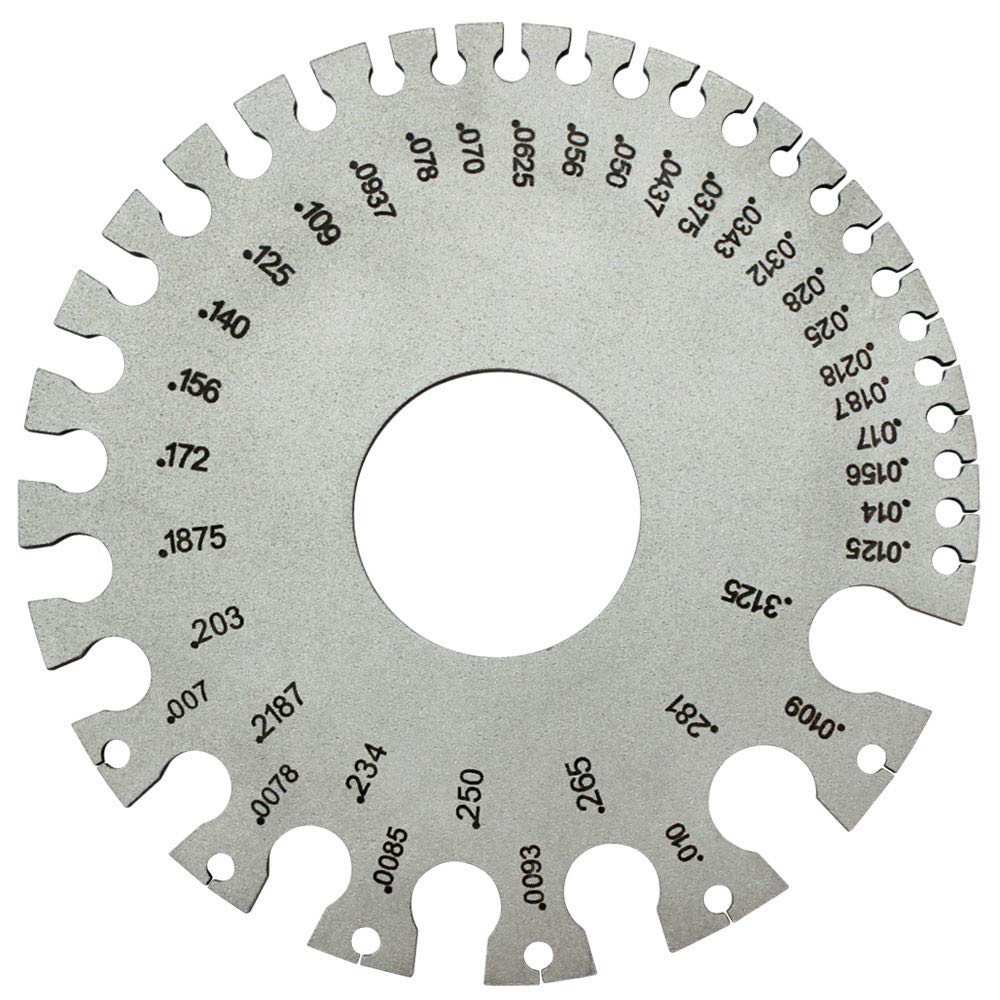

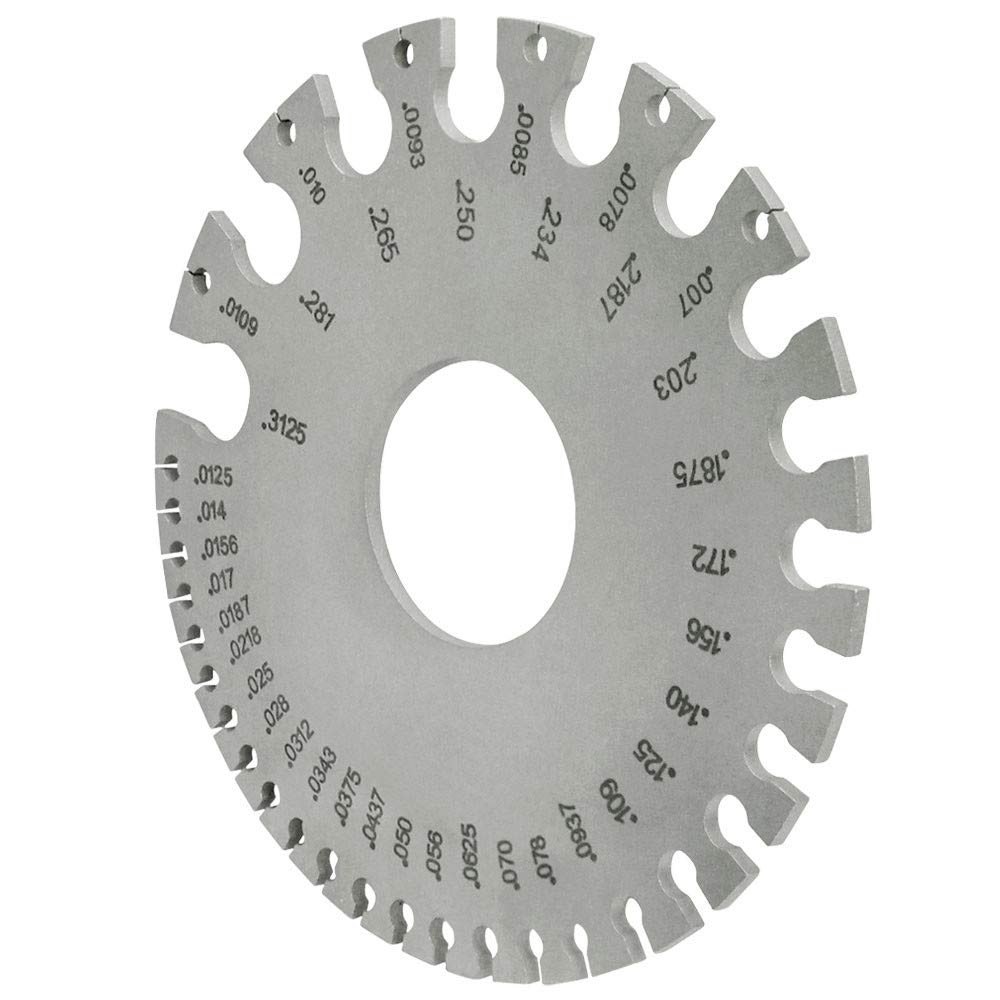

Prolinemax Round AWG SWG Wire Gauge Thickness Tester - Precision Metal Wire Diameter Measuring Tool (0-36 Gauge) for Electrical, Jewelry & Craft Projects

Product Description

Type: Wire & Sheet Metal GageFor use with: sheets, wire, plates of ferrous metalAmerican standard size: #0-#36Maximum Size (wire): #0 (.3125")Minimum Size (wire): #36 (.007")Diameter: 3-1/4"Wire Gauge Sizes: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36Decimal & Some Fraction Equivalents: .007, .0078, .0085, .0093, .01, .0109, .0125, .014, .0156(1/64), .017, .0187, .0218, .025, .028, .0312, .0343, .0375, .0437, .050, .056, .0625 (1/16), .070, .078(5/64), .0937(3/32), .109(7/64), .125(1/8), .140(9/64), .156(5/32), .172(11/64), .1875(3/16), .203(13/64), .2187(7/32), .234(15/64), .250(1/4), .265(17/64), .281(9/32), .3125(5/16)Fraction sizes are drill sizesShipping weight: 3 OUNCE
